The iconic drum machine behind Prince, Phil Collins, Michael Jackson and hundreds of the biggest records of the 1980s. Not just a piece of history — a piece of engineering that still sounds like nothing else.
Before Roger Linn became one of the most influential figures in music technology, he was a guitarist and songwriter with a practical problem. Working on music away from a studio, he had no drummer — and every drum machine on the market in the late 1970s sounded exactly like a drum machine: thin, artificial, and instantly recognisable as fake. Linn, who had been immersed in electronics since high school, decided the solution was obvious in retrospect but radical at the time: instead of synthesising drum sounds with analog circuitry, you record real drums and play them back digitally.
In 1979, Linn founded Linn Electronics and began development on what would become the first commercially available drum machine to use digital samples of real acoustic drums. Digital sampling had just become technically feasible at a price that wasn't absurd, and Linn saw immediately that storing short percussive sounds on ROM chips was not only possible but would produce results that no analog drum circuit could match.
Released in 1980, the Linn LM-1 was the machine that proved the concept. It stored sampled drum sounds on ROM chips, allowed programmable sequencing in real time or step time, had individual outputs for each voice, and gave musicians actual control over the kit — tuning, mixing, and arranging patterns into songs. Nothing like it had existed before.
The problem was the price. Early LM-1 units sold for approximately $5,000 — a figure that put them within reach of established artists and well-funded studios, but almost no one else. Prince acquired one. Peter Gabriel, Gary Numan, and a handful of others did too. The LM-1's sequencer had a particular internal groove to its timing — a slight humanisation that artists like Prince treasured and that became part of his signature sound on Controversy and 1999. But at five thousand dollars, the LM-1 was always going to be a machine for the few.

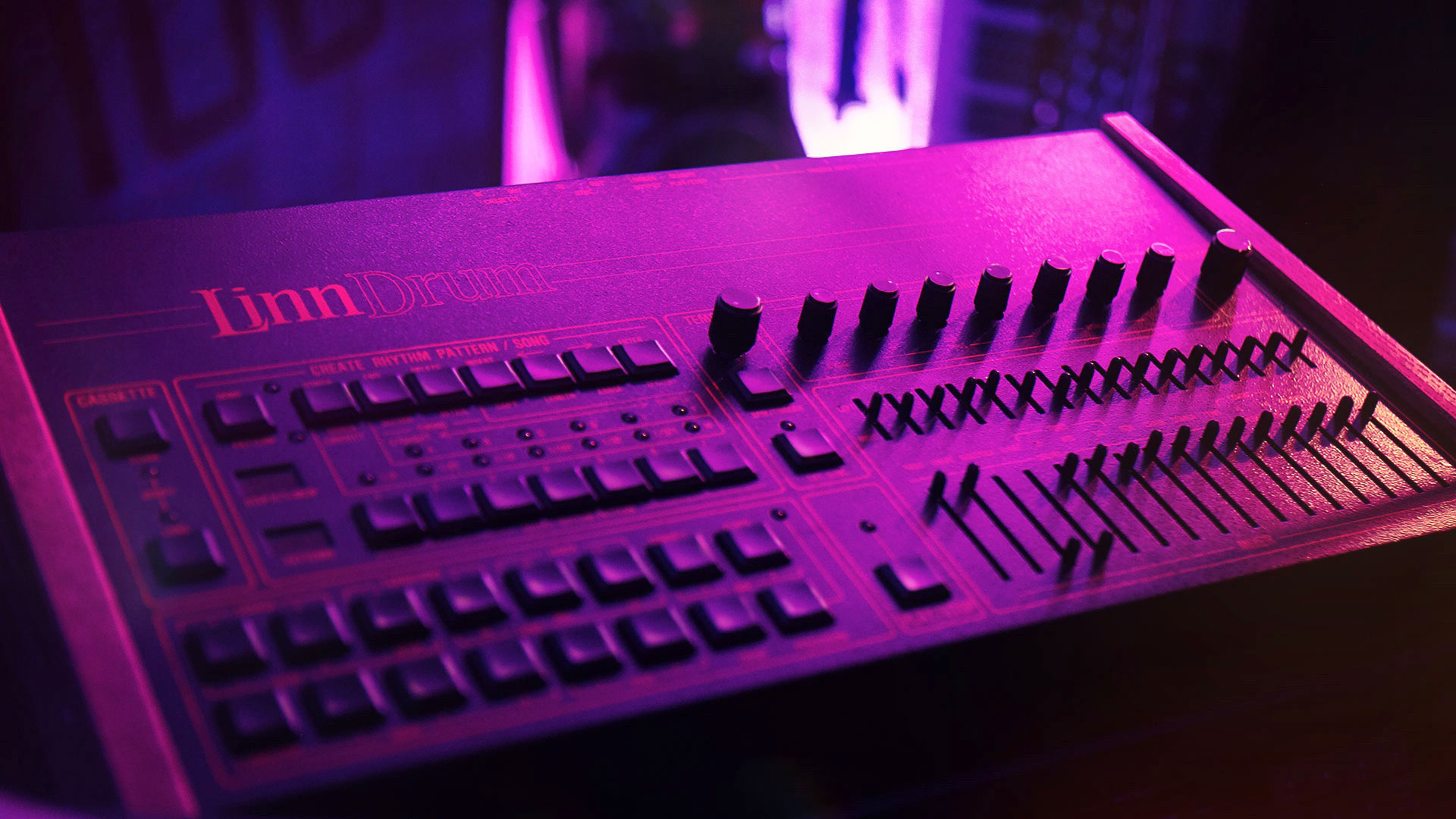

In 1982, Linn Electronics released the LinnDrum. The goal was the same sound and functionality at a price the broader market could afford. It succeeded on both counts. Where the LM-1 had been exclusive, the LinnDrum became ubiquitous — it sold more units than the LM-1 and its successor the Linn 9000 combined, and over the following three years its sound became inseparable from the sound of popular music.
The LinnDrum improved on the LM-1 in several ways. Sample quality was upgraded: the LinnDrum recorded its sounds at 35 kHz compared to the LM-1's 28 kHz, resulting in cleaner, brighter, more detailed samples. Two new voices were added — crash cymbal and ride cymbal — bringing the total to fifteen sounds. And critically, the LinnDrum introduced swappable EPROM chips, allowing users to replace the factory drum sounds with custom samples. This was a feature years ahead of its time.
The LinnDrum's design is worth understanding in detail, both because it explains why the machine sounds the way it does and because it informs every serious emulation of it.
The LinnDrum is often described as an "8-bit drum machine," which is technically accurate but misleading. Its DAC does not use standard linear 8-bit PCM — instead, it uses µ-Law (mu-law) encoding, a companding format borrowed from telecommunications. In µ-Law, the 256 possible 8-bit values are distributed logarithmically rather than linearly, allocating approximately 16 values per 6 dB range across the entire dynamic spectrum. The practical effect is a much wider effective dynamic range than straight 8-bit linear audio would provide. This is one of the key reasons the LinnDrum sounds substantially better than naive "8-bit" suggests — the encoding format gives it headroom and punch that linear quantisation at the same bit depth could not.
The LinnDrum tunes its voices by varying the playback rate of the sample — faster playback raises pitch, slower playback lowers it, exactly as tape speed affects pitch. This has an important sonic consequence: tuning a sound down lowers the effective sample rate, making the waveform coarser and introducing a characteristic crunch. Tuning up increases the effective sample rate, producing cleaner output with no aliasing. This variable-rate behaviour is audible and is part of the machine's character — the way a tom sounds slightly different at each tuning position is not a flaw but a feature, and getting this right is one of the harder parts of emulating the hardware accurately.
Each drum sound is stored on an EPROM chip — an erasable programmable read-only memory chip of the 2764, 27128, 27256, or 27512 type. The factory sounds occupy a set of these chips on the voice boards, but they are physically socketed and can be removed and replaced. This made the LinnDrum the first drum machine with a genuine upgrade path for its sounds: third-party EPROM sets with different drum kits, electronic sounds, or processed variations were available during the machine's lifetime, and a community of DIY sound designers still produces new EPROM sets today. The primary chip used is the 2732 (4KB), with some longer voices using 2764 chips.
The LinnDrum's architecture uses separate voice circuit boards for different groups of instruments, each handling digital playback and the initial analog conversion. After the DAC, each voice passes through an analog output stage — antialiasing filters, amplification, and the final mix circuitry. This analog processing is not incidental. The filter characteristics, the behaviour of the output amplifier, and even the noise floor of the analog stage all contribute to the LinnDrum's sound in ways that become apparent when comparing it to a mathematically perfect digital reconstruction of the same samples. The machine sounds warm partly because it is warm — the analog chain after the DAC colours the signal in ways that a purely digital path would not.
The service manual, available through vintage synthesiser archives, covers 29 pages including the CPU and I/O board, multiplexer drum circuits, individual voice card schematics for snare, toms, congas, and other groups, the power supply, and the mixer board layout. For repair and restoration work, this documentation is essential, as the voice cards are the most common failure points and individual component values matter significantly for authentic sound.
The LinnDrum's factory sound set consists of: bass drum, snare drum, rimshot (sidestick), closed hi-hat, open hi-hat, crash cymbal, ride cymbal, hi tom, mid tom, lo tom, hi conga, lo conga, cabasa, tambourine, cowbell, and hand clap — sixteen names but fifteen output channels, as the two hi-hat sounds share a voice with a decay control for the open hat. Each voice has an individual output on the rear panel, making the machine fully patchable into a mixing console for separate processing of every element.
The LinnDrum's sequencer was sophisticated for 1982 and remains intuitive today. Patterns are two bars long and can be recorded in real-time (playing the rubber pads live and letting the machine capture your timing) or in step time (entering hits button by button). Quantisation runs at 96 pulses per quarter note — finer than most machines of the era — and swing can be applied to give patterns a looser, more human feel.
The machine stores 56 user patterns and comes with 42 preset patterns. These patterns can be arranged into up to 49 songs, with copy and paste functions for moving patterns around. For live performance or composition, patterns could be triggered in real time without pre-programming a song. Finished arrangements could be backed up to cassette tape — the only storage medium available before MIDI made computer interfaces practical.
The LinnDrum predates MIDI. It shipped with external sync and trigger I/O, allowing it to lock to tape sync or drive other gear, but it speaks neither MIDI in nor out natively. Third-party MIDI retrofit kits exist and were widely used in professional studios from the mid-1980s onward.
Individual voice controls on the front panel include volume sliders and fine-tune rotary knobs for the bass drum, snare, rimshot, toms, and congas. An accent function is available for the kick, snare, and hi-hat, allowing dynamic variation within patterns without manual velocity programming.
The LinnDrum has a sound that is immediately recognisable and almost impossible to fake convincingly with a sample player alone. Several factors combine to produce it.
The µ-Law DAC encoding gives each hit a particular transient shape — punchy, forward, with a specific kind of attack that linear 8-bit would not produce. The variable-rate tuning means that every voice at every pitch setting is slightly different in texture, not just frequency. The antialiasing filters and analog output stage add warmth and a slight high-frequency roll-off that softens the otherwise brittle character of low sample rates. And the deliberate use of aliasing in certain frequency ranges gives the machine some of its high-frequency air — what might look like a flaw in a purely technical analysis turns out to be part of why the hi-hats and cymbals cut through a mix.
The snare drum in particular became one of the most imitated sounds in recorded music. Its particular crack — sharp, dry, with a short but definite tail — sat in the midrange in a way that was audible on any playback system from a car radio to a nightclub PA. Engineers spent years trying to replicate it with real drums. Most failed.
The list of significant recordings featuring the LinnDrum is essentially a map of 1980s popular music.
Prince made more use of the LinnDrum than almost any other artist. Beginning with the 1999 album (1982) and continuing through Purple Rain (1984) and Around the World in a Day (1985), Prince built entire arrangements around the machine. When Doves Cry — one of the best-selling singles of 1984 — famously contains no bass guitar whatsoever, leaving the LinnDrum as the foundation of the entire track. Little Red Corvette, Let's Go Crazy, Raspberry Beret, and I Would Die 4 U all feature LinnDrum prominently. Prince's characteristic approach to the machine — pitching the hand claps down to produce a heavier, thuddier sound — became one of the most recognisable sonic signatures of the decade.
Phil Collins used the LinnDrum extensively during the No Jacket Required period (1985), where it appears on tracks including Only You Know and I Know and Don't You Lose My Number. Collins, already known for innovative drum sounds from his work on Peter Gabriel's records, treated the LinnDrum as a compositional tool rather than a convenience.
Trevor Horn, one of the defining producers of the era, incorporated the LinnDrum into productions for Frankie Goes to Hollywood, ABC, and Yes. Stock Aitken Waterman, the production team behind much of late-1980s British pop, used it throughout their catalogue. Naked Eyes, Mark Knopfler, and dozens of other artists of the period built records around it.
Linn Electronics ceased production of the LinnDrum in 1985, by which point MIDI had made the machine's lack of standard connectivity a significant commercial liability. Roger Linn moved on to the Linn 9000 — which added MIDI, sampling, and a sequencer — but the 9000 was expensive, complex, and unreliable, and it did not achieve the LinnDrum's cultural footprint.
Today a working LinnDrum in good condition sells for between $1,000 and $3,000 on the vintage market, depending on condition and whether a MIDI retrofit has been installed. The machine is fragile by modern standards: the voice cards are prone to failure, battery-backed RAM loses patterns when the battery dies, and finding original EPROM chips in working condition is increasingly difficult. Professional restoration services exist specifically for Linn machines, and the community around them remains active.
The sounds themselves have never gone away. The LinnDrum snare appears on recordings made decades after the hardware was discontinued, sampled, processed, or simply acknowledged as a reference point. When producers talk about wanting a "that 80s snare sound," they mean this machine.
For engineers working on hardware restoration or software emulation, the following technical points are the ones that matter most.
The µ-Law DAC is not optional for accurate emulation — linear 8-bit audio played back from the same samples will sound noticeably different, flatter and less punchy, because the transient shaping from the companding curve is part of the sound. Any serious LinnDrum emulation must implement µ-Law decoding correctly.
Variable-rate playback for tuning must be implemented per-voice, not via pitch-shifting of linear audio. The coarsening that occurs when tuning down is a product of the reduced effective sample rate and should be preserved.
The antialiasing filter behaviour and analog output stage coloration are harder to characterise precisely without access to calibrated hardware measurements, but both contribute to the warmth of the machine and the attenuation of very high frequencies. A flat digital reconstruction of the raw samples will be brighter and harsher than the real hardware output.
For hardware repair, the service manual's voice card schematics are the essential reference. The most common failure modes are capacitor degradation on the voice cards, battery failure causing pattern memory loss, and EPROM socket corrosion causing intermittent voice dropouts. The power supply is a secondary failure point and should be recapped as a matter of course on any machine that has not been serviced in the last decade.
The primary EPROM type used in the LinnDrum is the 2732 (4KB, 4Kx8), consistent with the 4K-per-sound ROM allocation. Some voices use 2764 chips (8KB) for longer samples. Modern replacements are available but must be correctly programmed with the original binary images, which are documented and preserved in the vintage synthesiser community.
MorphDrum is a forthcoming VST plugin by Morphoice built from the ground up as a faithful recreation of the LinnDrum. All fifteen original voices are present, with per-voice tuning and mixing matching the hardware's front panel controls. The Vintage DAC mode emulates the µ-Law conversion and analog output stage that give the real machine its characteristic warmth and punch. The EPROMS tab lets you swap the factory drum sounds for custom sample sets, just as the original hardware allowed. A built-in compressor and nonlinear reverb complete the signal chain.
